Migo Solar Glass, a professional solar glass manufacturer, specializes in producing high-quality low-iron patterned and flat solar glass solutions for front and back sheets of crystalline silicon and thin-film PV modules, as well as cover glass in flat-plate thermal collectors. Our expertise in textured patterns like Mistlite ensures optimized optical performance and long-term reliability in demanding solar applications.
Products Description

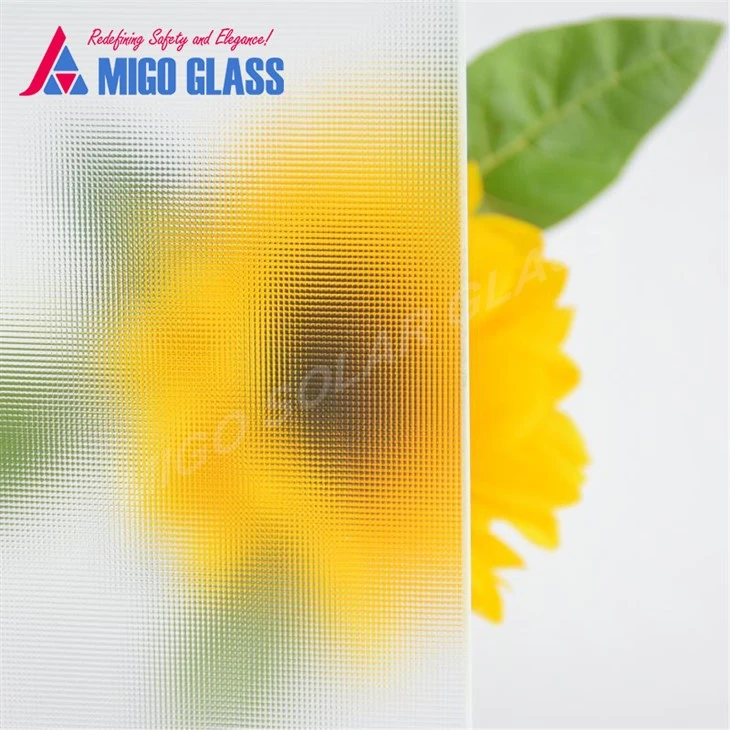

Mistlite patterned solar glass is an ultra-clear, low-iron rolled glass featuring a fine, diffused mist-like texture (also known as satinlite or pinprick pattern) embossed on one side during the forming process. This subtle, uniform dot-like or frosted texture provides excellent light diffusion while maintaining high transparency.
Key engineering features include:
- Superior Light Management
The Mistlite pattern scatters incident light, reducing specular reflection and increasing internal reflections for better solar energy capture across a wide range of incidence angles.
- Reduced Glare and Improved Aesthetics
Minimizes reflective glare for better visual comfort in rooftop or ground-mount installations; partially obscures cell visibility for a uniform appearance.
- Anti-Soiling Benefit
Textured surface helps reduce dust and dirt adhesion, supporting easier natural cleaning in rainy environments.
- High Durability
Combined with full tempering, it offers excellent resistance to hail, wind loads, thermal shock, and UV degradation over 25+ years.
Specifications
|
Material |
Clear mistlite textured glass |
|
Glass thickness |
3.2mm/4mm (tolerances ±0.2 mm) |
|
Dimensions |
Standard sizes up to 2500 × 2100 mm; custom cuts available |
|
Optical Performance |
Solar Transmittance ≥89.5% |
|
Visible Light Transmittance ≥91.2% |
|
|
Mechanical Properties |
Surface Compression - ≥ 69 MPa (full tempering) |
|
Strength - 4–5× annealed glass |
|
|
Impact Resistance - Meets IEC 61215 hail test requirements |
|
| Glass Processing | Cutting, edge grinding, tempering |
|
Standards |
EN12150, EN1288-3 certification for TUV Rheinland |
Quality Control and Standards
Quality assurance follows a rigorous, full-process protocol:
- Raw material purity and iron content verification
- Real-time monitoring of thickness, flatness, pattern uniformity, and defects
- Optical testing for transmittance, haze, and solar-weighted performance per batch
- Tempered glass stress and fragmentation checks
- Durability validation under accelerated UV, thermal cycling, and humidity
SGS certificate, SPF certificate and CE certificate and ect
