A water flow switch is a device used to detect the presence or condition of water flow in a piping system. When the water flow reaches the operating condition of the switch, the internal mechanism changes the electrical contact state and sends a signal to a connected control system.
Water flow switches are commonly used in water circulation, heating, cooling and solar water heating systems where equipment needs to monitor whether water is flowing through the pipeline.
Unlike a flow meter, which is primarily used to measure the amount or rate of flow, a water flow switch is mainly used to provide a switching signal based on flow conditions.
How Does a Water Flow Switch Work?
The exact operating principle depends on the design of the flow switch.
In a typical system, water enters the pipeline and passes through the flow switch. The movement of water acts on an internal sensing mechanism. When the required flow condition is reached, this mechanism activates the electrical switch.
The basic process can be understood as:
Water Flow → Sensing Mechanism → Switch Activation → Electrical Signal → Control System
When the water flow decreases or stops, the sensing mechanism can return to its original state according to the design of the switch.
This allows the flow switch to provide a simple way for compatible control equipment to monitor water flow conditions.
Common Types of Water Flow Switches
Different systems require different methods of detecting water flow. Some common flow switch designs include:
-
Paddle Flow Switch
A paddle flow switch uses a paddle positioned in the flow path. Moving water acts on the paddle, causing the switching mechanism to operate when the required flow condition is reached.
This type is commonly associated with larger piping and water circulation applications.
-
Piston Flow Switch
A piston-type flow switch uses the movement of an internal piston or similar component to respond to water flow.
As the flow changes, the internal component moves and activates the switching mechanism according to the design of the device.
-
Magnetic Flow Switch
Some flow switches use a magnetic mechanism together with an electrical switching component.
The movement caused by water flow changes the position of the magnetic component, allowing the switch to detect a flow condition without requiring the electrical contact itself to be directly exposed to the water.
The exact internal design varies by product, so buyers should always check the technical specifications of the selected model.
Water Flow Switch vs. Flow Sensor vs. Flow Meter
Although these terms are sometimes used together, they do not necessarily describe the same type of device.
| Device | Main Purpose |
|---|---|
| Water Flow Switch | Detects a flow condition and provides a switching signal |
| Flow Sensor | Detects flow and may provide a signal representing flow conditions |
| Flow Meter | Measures and displays or transmits flow rate or quantity |
For example, if a system simply needs to determine whether the required water flow condition has been reached, a water flow switch may be suitable.
If the system needs to know the actual flow rate, a flow meter or appropriate flow sensor may be required instead.
Where Are Water Flow Switches Used?
Water flow switches can be found in many types of water circulation equipment and systems, including:
- Solar water heating systems
- Solar thermal circulation systems
- Hot water circulation systems
- HVAC systems
- Heat pump systems
- Heating and cooling equipment
- Water circulation equipment
- Pumps and related control systems
- Industrial water systems
The correct flow switch should be selected according to the actual operating conditions and system requirements.
Water Flow Switches in Solar Water Heating Systems
Water circulation is an important part of many solar water heating and solar thermal systems.
Depending on the system design, a water flow switch can be integrated into the circulation pipeline to provide a flow-related switching signal to compatible control equipment.
For this type of application, buyers should consider not only the pipe size but also the operating temperature, pressure, electrical requirements and required switching conditions.
The selected flow switch must be compatible with the design and operating conditions of the solar water heating system.
What Does NO and NC Mean on a Flow Switch?
When selecting a water flow switch, buyers may encounter the terms NO and NC.
NO means Normally Open, while NC means Normally Closed.
These terms describe the electrical contact state under the defined normal or non-activated condition.
Whether NO or NC is required depends on the control logic of the equipment. Therefore, the electrical requirements of the system should be confirmed before selecting a flow switch.
How to Choose a Water Flow Switch
Several factors should be considered when selecting a water flow switch.
1. Pipe Connection Size
The connection size must be compatible with the piping system.
Common project requirements may involve different connection sizes, so the required size should be confirmed before ordering.
2. Thread Type
Connection diameter alone is not enough.
Buyers should also confirm whether the system requires a particular thread standard or connection configuration.
3. Flow Operating Conditions
The required activation or switching condition is one of the most important considerations.
The selected switch should match the expected water flow conditions of the system.
4. Working Temperature and Pressure
The flow switch must be suitable for the operating temperature and pressure of the application.
This is particularly important for heating and solar thermal applications.
5. Electrical Requirements
Buyers should confirm the electrical characteristics required by the control system, including the appropriate switching configuration.
6. Electrical Connection
Different installations may require different electrical connection configurations, such as a plug connector or direct wire lead.
Selecting the appropriate connection can simplify installation and system integration.
Why Is the Flow Direction Important?
Many water flow switches are designed to operate according to a specified direction of water movement.
An arrow or other direction indicator may be marked on the body of the device.
During installation, the flow direction indicated on the product should be aligned with the actual direction of water flow, subject to the manufacturer's installation instructions.
Incorrect installation may affect the operation of the flow switch.
Frequently Asked Questions
What does a water flow switch do?
A water flow switch detects a specified water flow condition and changes its electrical switching state, allowing compatible control equipment to monitor the flow condition.
Does a water flow switch measure flow rate?
A flow switch is primarily intended to provide a switching signal. If accurate flow-rate measurement is required, an appropriate flow meter or flow sensor should be considered.
Can a water flow switch be used in a solar water heating system?
A suitable water flow switch can be used for flow monitoring in compatible solar water heating and circulation applications. The product must be selected according to the system's operating conditions.
What information is needed when selecting a flow switch?
Important information can include pipe size, connection type, flow conditions, working temperature, working pressure, electrical requirements and application.
Need a Water Flow Switch for Your Solar Water Heating Project?

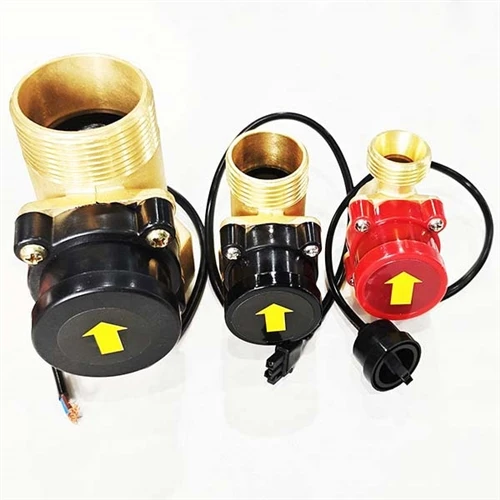

MIGO supplies Brass Water Flow Switches for water circulation and solar water heating applications, with 3/4", 1" and 1 1/2" size options and different electrical connection configurations.
