Tempered Solar Panel Glass

Send Inquiry
Tempered Solar Panel Glass
Details
Product name: Tempered solar panel glass
Appearance: Flat tempered
Glass Thickness: 2mm 3.2mm 4mm 5mm
Glass size: 1128*2272mm, 2000*1000mm and customized sizes
Light Transmittance: tempered ultra clear solar glass LT 91.5%-97%
Certification: CE, CCC, SGS, SPF
Category
BIPV Glass & Roof Tiles
Share to
Description

Products Description



Migo's tempered solar glass is made for top - notch solar panels and heat collectors.

When it comes to solar glass, how much light gets through and how tough it is matter a lot. Our tempered glass is great at both. It makes sure we get as much energy from sunlight as possible, and it lasts a long time.



It has less iron in it-only 100 - 120ppm, way less than the usual 150 - 300ppm. So it doesn't soak up much light, and lets more sunlight get in. If you add the optional special coating (on one or both sides) that stops light bouncing off, up to 97% of light gets through. That makes solar panels work a lot better.



Migo's tempered solar glass is 4 to 5 times stronger than regular annealed glass. To temper it, we heat it up real close to melting, then cool it down fast. That makes the surface tight and the inside stretchy. This way, there are no little cracks inside. So the tempered glass can take hits, handle hot and cold, and doesn't break easy. That's really important for dealing with bad weather outside, like hail, super hot or cold days, and stuff blowing in the wind.



Specifications



Product name

Tempered solar panel glass

Glass thickness

2mm/3.2mm/4mm/5mm

Glass types

Low iron patterned glass or low iron float glass

Light transmittance

Tempered Low iron solar glass - 91.6%

Tempered low iron solar glass with 1 ARC - 93.6%

Glass corner edge treatment

Cut edges, grounded round edges

Standards

EN12150, EN1288-3 certification for TUV Rheinland



Migo tempered solar panel glass advantages:



  • Superior strength: The tempering process makes it 4 to 5 times stronger. So it can take hits, handle hot and cold stress, and doesn't break easily. Perfect for tough outdoor places.



Tempered solar panel glass



  • AR coating durability: We put the coating on before tempering. That way, it sticks really tight and won't peel off, even when the weather is super bad.
  • Stable supply: We have our own production furnace. It makes 150 tons a day (that's 6 containers daily). So we can schedule things flexibly and keep delivering on time, which is great for long-term partnerships.

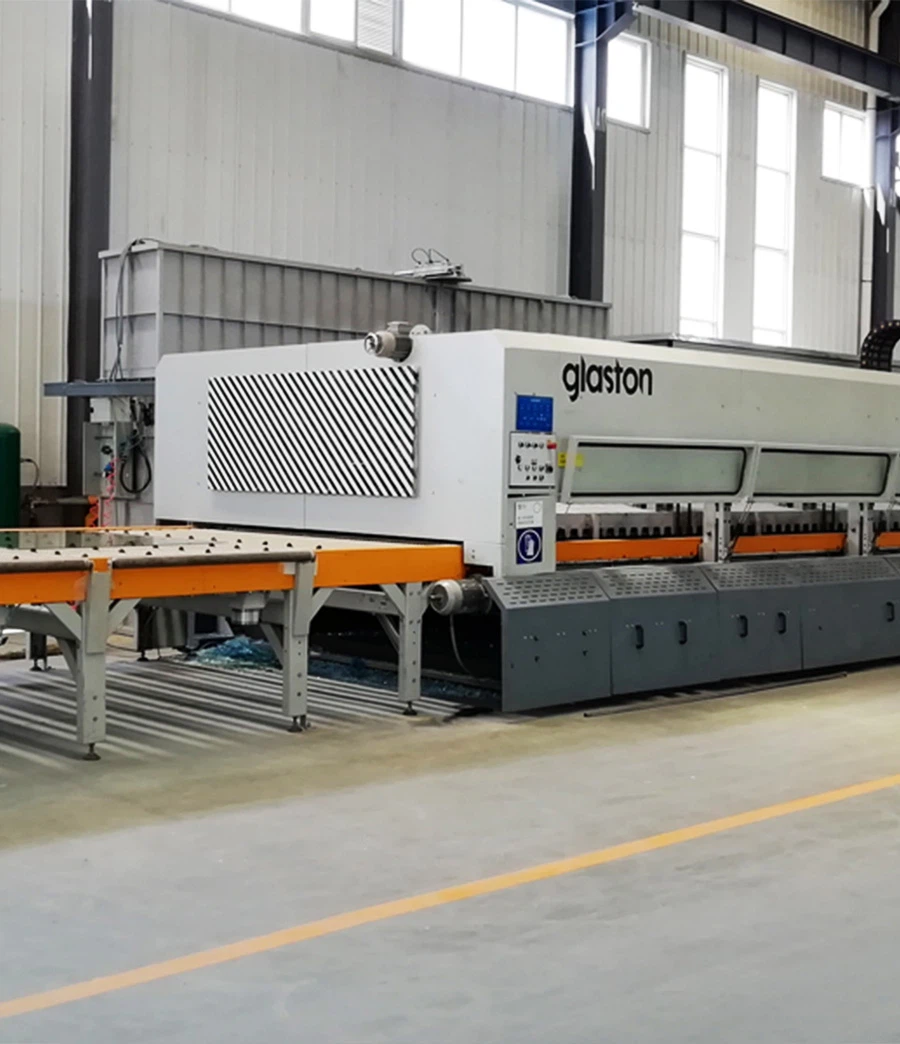

Migo Glass Production

  • Full - service know - how: Our team gives pro advice, from picking the right product to making it. And we use special packing-moisture - proof paper, foam padding, and steel - reinforced crates-to make sure it gets there safe by sea

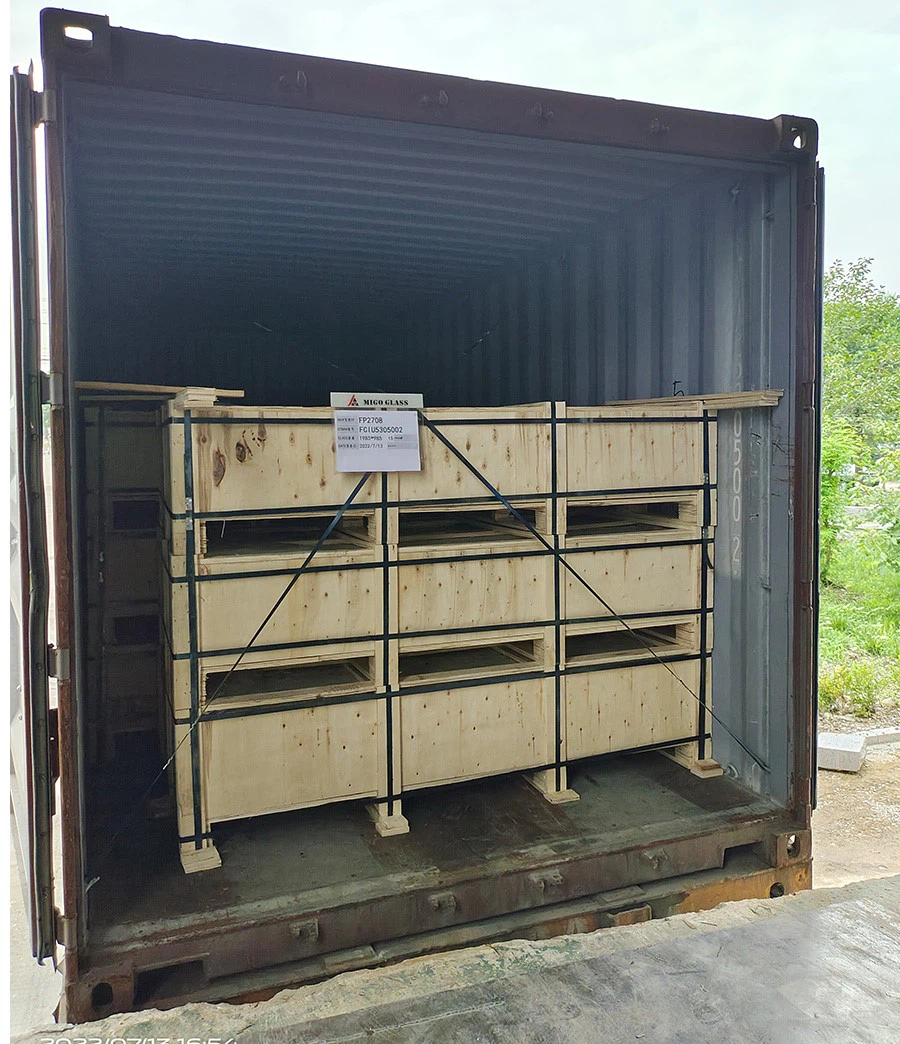

Solar Glass Pallets Loading



Migo soalr glass certificate

SGS certificate, SPF certificate and Ce certificate and ect are available.

glass certificate

Hot Tags: tempered solar panel glass, China tempered solar panel glass manufacturers, suppliers, factory, Annealed Solar Glass, Anti glare Solar Glass, Glass For Solar Panels, Matt matt Solar Glass, Prismatic Matt Solar Glass, Ultra clear Solar Glass
